Titration method - KF analyzer
As a leader in Microcoulometric Karl Fischer analyzer manufacturer until more than 45 years, Nittoseiko Analytec Inc. ( Prevously Mitsubishi Analytech Co) is able to propose you the most wide choice of different configurations, as the small portable system KF analyser

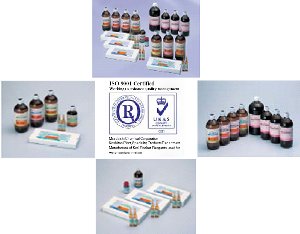

We propose you a set of KF reagents from the highest quality:
AQUAMICRON Reagents: Provided in small quantity, 100ml up to 500 ml bottles for anolyte
AQUAMICRON Reagents : In small 5ml Ampoules for catholyte
Analytical standard are also available in ampoules of 5 ml
Choose the highest quality for your KF reagents
If you need more detail about the reagents or KF applications please contact us by mail, we will send you more information’s and actual prices by return either in electronic form (pdf files ) or by normal mail
KF Reagents and standards
Download info
Download info

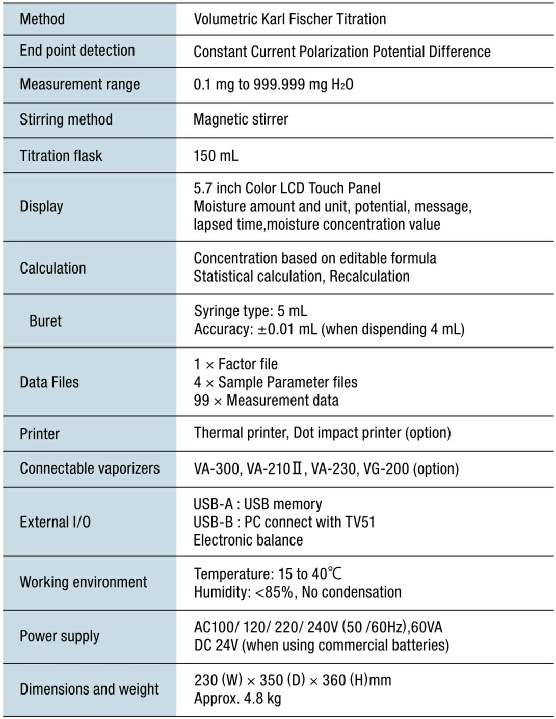

KF-51 Titration method
For on site analysis on in your lab
Integrated burette
Extremely compact design
Touch screen control and USB interface
Range: 100 ug to 1000 mg H2O
Sensitivity: 0,1 ug H2O
Background : Automatic correction
Can be configured with battery (option)
Example of Application
Moisture in transformer oil
Moisture analysis on production site
QC control
Fit to all small laboratories or take your analytical instrument with you !
A large touch screen display is on the upper front of the instrument giving a clear information about the status of the analysis.
All information's are in on screen
Information's are given to guide the user through the instrument setup, only follow the diplayed info and at the end start the titration.
Fill up the titration reagent, purge and fill up the syringe up to the cell entrance.
The instrument check the blank background, titrate automatically this blanc down and check for stable base line.
A soon the value is stable, a message inviting you to inject the sample in the cell is displayed, the titration starts automatically until the end, and finally the result is displayed and registered in the internal memory file.
The previous analysis results can be researched, displayed, recalculated, printed or exported via USB interface.
Of course a balance can be connected with the KF -51 instrument
The VA-51 oven module is available for desorbtion of water, up to 300°C .
Very simple to use, the sample boat is automatically pushed into the transparent oven, where the melting of the sample can be easily monitored.
At the end of the analysis a simple screwed plug give you access to the sample boat.
Maintenance is easy, directly from the front.
As option, our carriage device is used for on site samples analysis, including a separated battery.
Appreciated in industry and refinery, you can make in process analysis in short time, avoiding any contaminations due to transport of the sample at the lab.
The glass titration cell is completely closed and have at the top side some holes (glass-glass connection) accepting the detection electrode and the KF reagent pouring tube.
One can be equipped either with a glass plug or a gas bubbler if you use the VA-51 Oven option.
On the top side of the titration cell, your will find a Teflon plug for liquid sample injection, closed with a silicone septa, so it’s easy to inject liquid samples or, by removing this Teflon plug, pour inside the cell your solid sample.
The concept of this cell give the insurance of no leakages or humidity inrush.

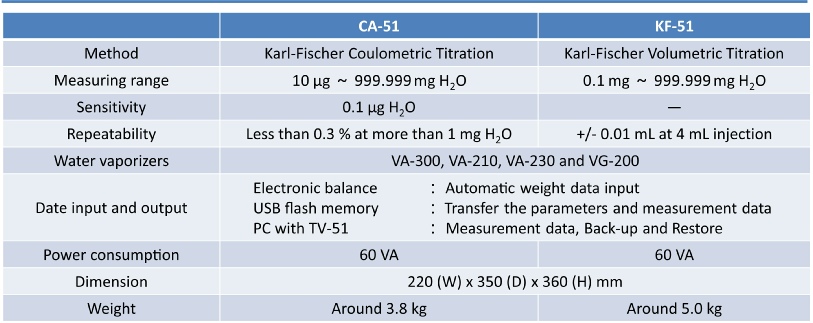

Which instrument configuration fit your need ?
